AOI Solution Malaysia: Inspection Guide

Published 31 July 2026Reviewed 17 September 2026Prepared and reviewed by SERVICEDIRECTORY

How this guide was prepared

SERVICEDIRECTORY reviewed the provider's published AOI explanation and organised the guidance around inspection objectives, defect size, sample coverage, optics and lighting, cycle time, false-reject control, programming, validation, and production integration.

Evidence boundary: SERVICEDIRECTORY did not independently validate a machine or production line. Detection capability, speed, repeatability, integration, and acceptance criteria should be demonstrated with representative samples and agreed test results. Read our editorial policy.

What is an AOI solution?

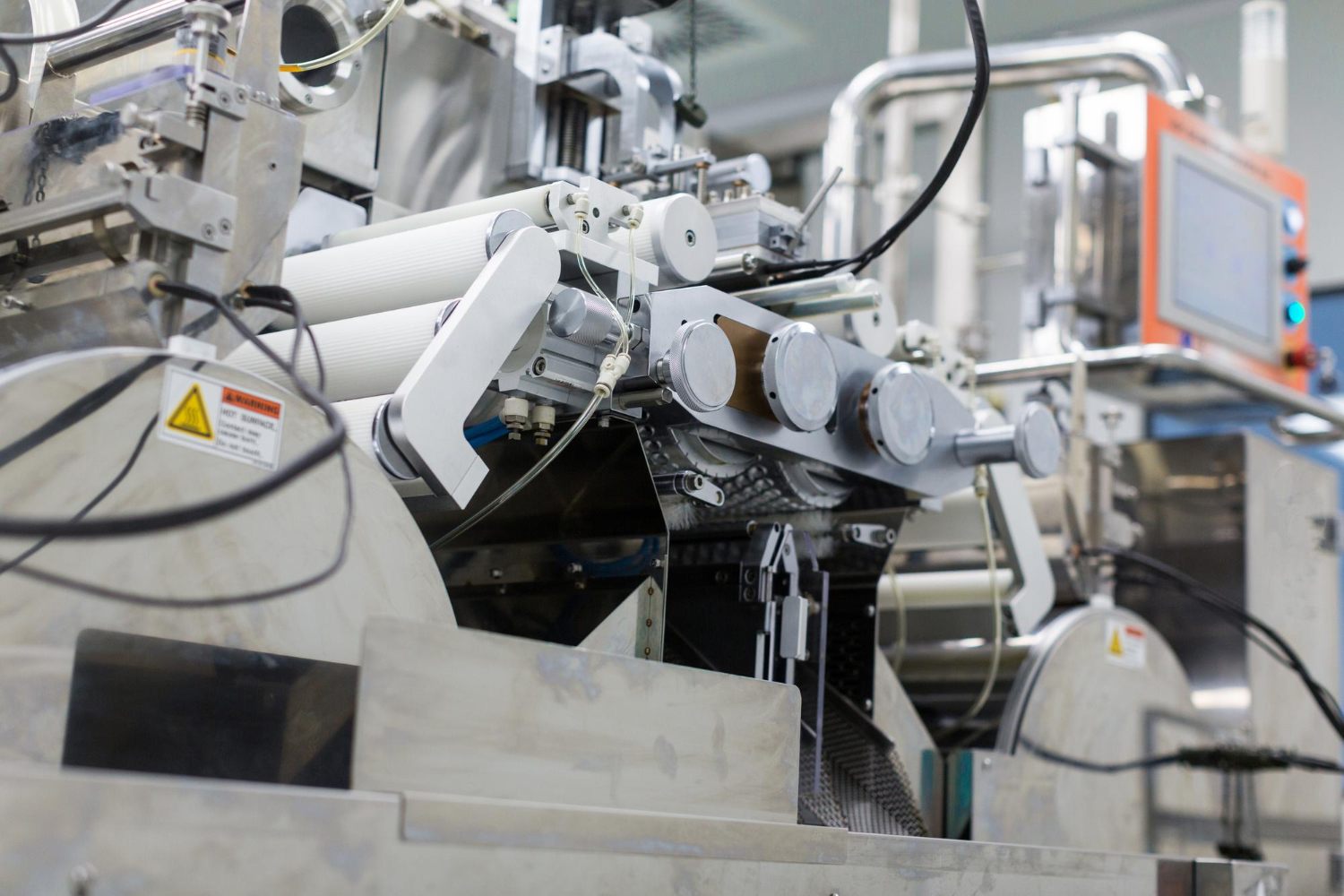

An AOI solution, or automated optical inspection system, uses cameras, controlled lighting, optics, software, and production handling equipment to examine manufactured parts. It compares captured images with programmed rules or approved references, then records a pass, fail, measurement, or defect classification. AOI is widely associated with printed circuit board inspection, but the same principles can support semiconductor components, automotive parts, moulded plastics, metal products, labels, die-cut materials, medical products, and other visually inspected items.

The objective is not simply to replace a person with a camera. A useful system must present the product consistently, reveal the required feature, separate acceptable variation from a genuine defect, and communicate the result to the production process. That requires suitable sample evaluation and realistic acceptance criteria before equipment is selected.

What an AOI system includes

Industrial cameras and lenses selected for the inspection area and required detail.
Lighting that creates stable contrast for surfaces, edges, components, marks, or dimensions.
Image-processing software for pattern matching, measurement, object detection, or classification.
Fixtures, conveyors, triggers, encoders, sensors, and reject mechanisms where required.
Recipes, defect limits, result storage, alarms, and communication with production equipment.
Testing, validation, operator training, documentation, and support after installation.

Why manufacturers use AOI

Inspection speed is one reason to automate. Once a stable recipe is validated, an AOI machine can inspect repeated features without waiting for a manual check at every station. Detection capability is another: suitable optics and lighting can make small, low-contrast, or repeated defects easier to assess. Common targets include missing parts, incorrect position, orientation, scratches, stains, surface damage, incomplete features, and dimensional variation.

AOI also improves repeatability and traceability. The same rules can be applied to each inspected item, while saved images and results support troubleshooting. Earlier detection may reduce downstream rework, but the benefit depends on false-reject control, line speed, maintenance, and how quickly production teams respond to the data.

Planning a suitable system

Begin with samples rather than a general equipment specification. Define defect types, minimum defect size, product variants, cycle time, presentation, available space, environmental conditions, data needs, and the action required after a failed result. A sample test helps determine whether 2D, 3D, line-scan, area-scan, or another imaging method is appropriate.

Programming quality remains important. Poor lighting, unstable positioning, unclear limits, or limited validation can produce missed defects or excessive false rejects. Manufacturers comparing providers should ask how samples are tested, recipes are validated, operators are trained, and future product changes are supported. For another practical explanation of adoption factors, review this AOI solution resource and confirm current capabilities directly with the provider.

Who needs an AOI solution?

AOI is relevant to factories with repetitive visual checks, rising inspection volume, small or complex features, inconsistent manual results, traceability requirements, or expensive downstream defects. Engineering, quality, production, and procurement teams should evaluate the application together because inspection performance depends on both the vision system and the surrounding manufacturing process.
